Board 049 - FAST Multimedia Movie Machine (MM ST12aT v1.2)

Id	B049
Type	Video::VGA
Where is it?	Storage
Description	Fast Multimedia Movie Machine ISA

Details

Brand	FAST Multimedia AG
Family
Model	MM ST12aT v1.2
P/N	102324
Assy
Bus	ISA 16-bits
Compatibility	PC
Dimensions	·      Length:  ·      Height: ·      Slots:
Connectors	·      Internal o  1 x 62+36-pin edge line-in male [ISA 16-bits] o  1 x 26-pin (2x13) head male [JP4] o  1 x 26-pin (2x13) head male [JP5] o  1 x 16-pin (2x8) head male [JP10] ·      External o  2 x DE-15 Female o  1 x RCA Female (?)
Switches	·      JP8: 4-pin (2x2) head male Unknown ·      JP11: 2-pin (1x2) head male Open: external VT Close: onboard VT
Accessories	·      None
Missing	·      Documentation ·      Software ·      Cables ·      Packaging
Links	·      https://www.cnet.com/products/olicom-oc-3137-network-adapter/

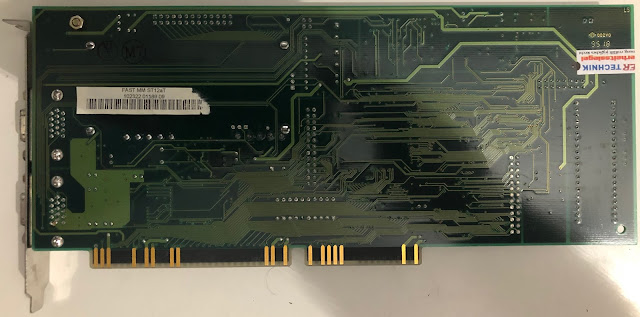

 Images
