Board 050 - WINNOV Multimedia ISA Card

Id	B050
Type	Multimedia
Where is it?	Storage
Description	WINNOV

Details

Brand	WINNOV
Family
Model
P/N
Assy
Bus	PCI
Compatibility	PC
Dimensions	·      Length:  ·      Height: ·      Slots:
Connectors	·      Internal o  1 x 98-pin edge line-in male [PCI] o  1 x 4-pin head (1x4) male [AUDIO?] o  1 x 4-pin head (1x4) male [CD] ·      External o  1 x Mini-DIN-4 female [S-VIDEO] o  1 x Mini-DIN-8 female [MXC] o  1 x RCA Female [VIDEO] o  1 x Phone 3.5mm Stereo Female [AUX] o  1 x Phone 3.5mm Stereo Female [LINE MIC] o  1 x Phone 3.5mm Stereo Female [SPEAKER]
Switches	·      JP8: 4-pin (2x2) head male Unknown ·      JP11: 2-pin (1x2) head male Open: external VT Close: onboard VT
Accessories	·      None
Missing	·      Documentation ·      Software ·      Cables ·      Packaging
Links	·

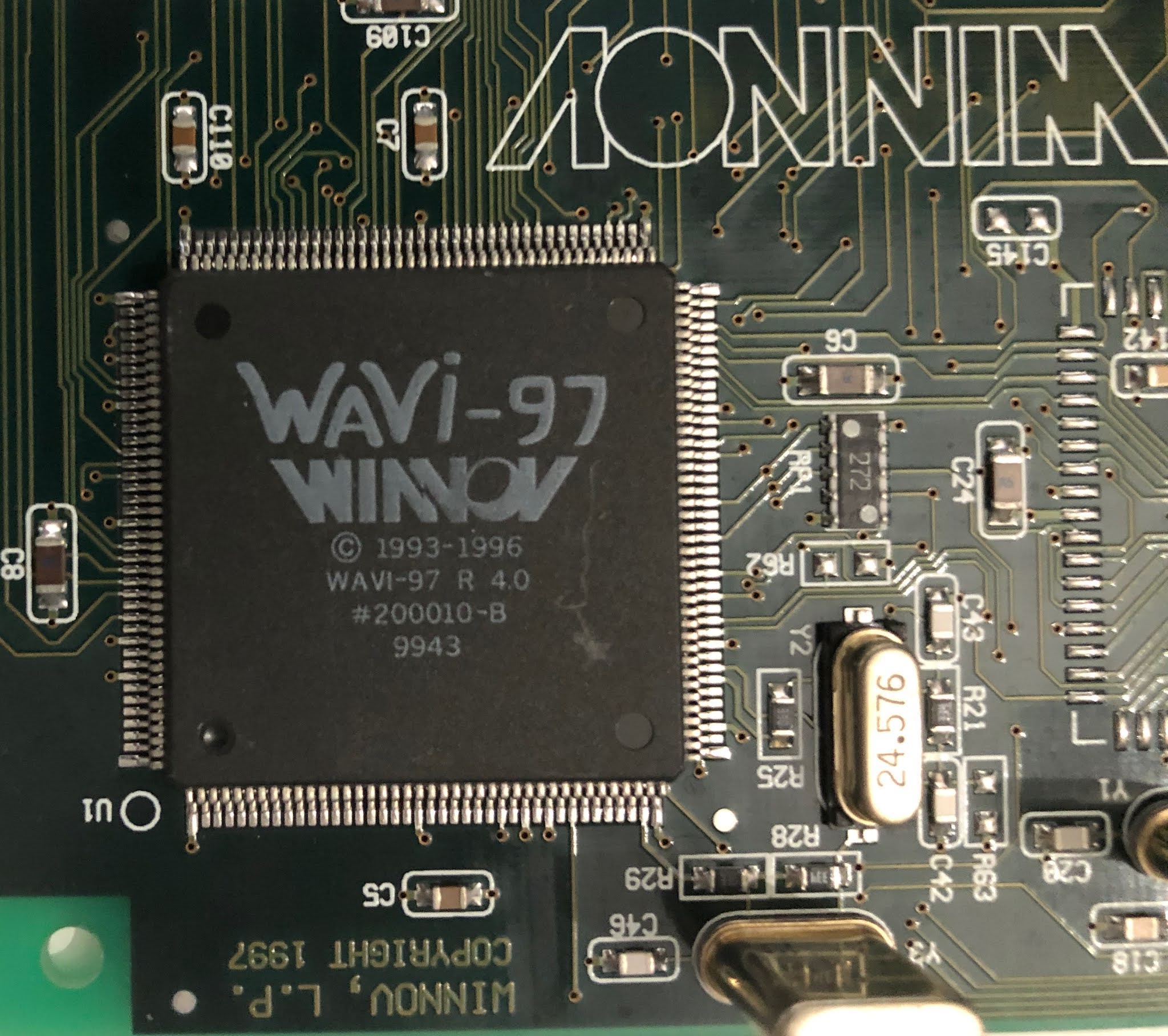

Images
